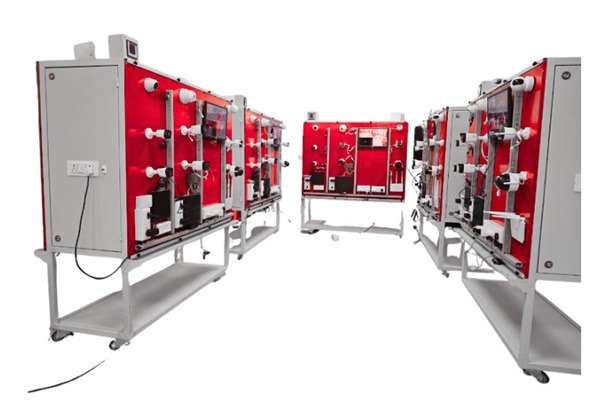

BUILDING CONTROL SYSTEMS AND AUTOMATION LAB

I. Wiring Cubicle for Building Control Training

• Type: Universal Wiring Cubicle for Security & Fire Automation Training
• Dimensions: 1.2 m (Height) × 1.2 m (Width) × 0.9 m (Depth)
• Structure: Wooden with Mild Steel Frame
• Quantity: 1 Unit (shared for both packs)

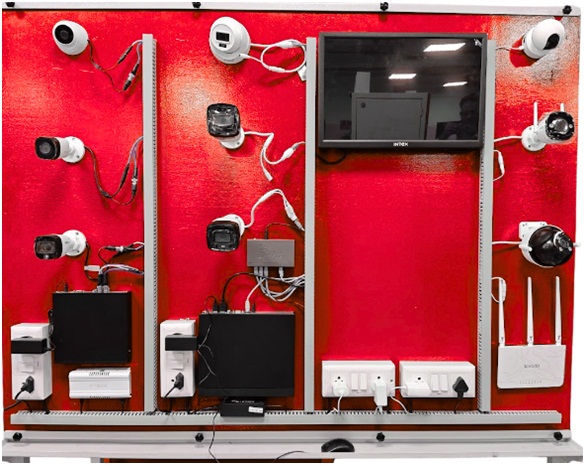

II. Secure Building – CCTV and Access Control Pack

A. Video Surveillance System

• Bullet Camera (IP): 1.3 MP HD, 1/3″ CMOS, 4mm lens – 1 Nos
• Dome Cameras (IP): 2 MP, 1/3″ CMOS, 4mm lens – 2 Nos
• NVR (Network Video Recorder): 4 Channel Video + 1 Channel Audio, HDMI/VGA output, 1 SATA slot (4TB) – 1 Nos
• Hard Disk: 1TB for video recording – 1 Nos
• HDMI Cable & Wall Box: 1 Set
• 19-inch LCD Display with HDMI & Audio: 1 Nos
• 4U Rack for Equipment Mounting: 1 Nos

B. Networking and Connectivity

• 8-Port 10/100 Network Switch (with 4 PoE Ports, 53W): 1 Nos
• CAT 6 Cable: 10 meters – 1 Nos
• Power Extension Board: 1 Nos

C. Access Control System

• 2-Door Intelligent TCP/IP Access Controller (Networkable): 1 Nos
• Access Control Management Software: 1 License
• Proximity Card Reader: 1 Nos
• Smart Card Reader: 1 Nos
• Electronic Locks: 2 Nos
• Exit Push Buttons: 2 Nos
• Proximity Access Cards: 2 Nos
• Smart Access Cards: 2 Nos
• Emergency Door Release (EDR): 2 Nos

D. Power & Distribution

• Distribution Board (12 Way, 1 Tier): 1 Nos
• RCCB – 4P, 25A, 300mA: 1 Nos
• Contactor – 1 Nos
• Emergency Stop Push Button (E-Stop): 1 Nos

E. Cables & Accessories

• 2 Core 1.0 sq.mm Unarmoured Cable: 50 meters
• 8 Core 0.75 sq.mm Unarmoured Cable: 50 meters
• 2 Core 0.75 sq.mm FRLS Cable: 50 meters

F. Control Station

• Computer System (i5/8GB RAM/SSD): 1 Nos
• Computer Table: 1 Nos

III. Safe Building – Addressable Fire Alarm and Public Addressing System Pack

A. Fire Alarm System (Addressable)

• Analog Addressable Fire Alarm Control Panel: 1 Nos
• Fire Alarm Configuration Software: 1 License
• Multisensory Detector (Smoke + Heat): 1 Nos
• Standalone Smoke Detector: 1 Nos
• Standalone Heat Detector: 1 Nos
• Common Detector Bases: 3 Nos
• Manual Call Point (MCP): 1 Nos
• Sounder/Strobe Unit: 1 Nos
• 12V 7AH Backup Battery: 1 Nos
• Rotary Warning Light: 1 Nos
• Distribution Board (12 Way, 1 Tier): 1 Nos
• Emergency Stop (E-Stop): 1 Nos
• 2P, 25A RCCB: 1 Nos
• Contactor – 1 Nos

B. Control and Interface Modules

• Control I/O Modules for Integration (ACS & Indication Lamp Control): 3 Nos

C. Public Addressing System

• 8-Zone Voice Alarm Controller with Console + USB/MP3/FM/AM: 1 Nos
• Power Amplifier – 240W: 1 Nos
• Ceiling Speakers (6W, High Clarity): 3 Nos
• 6U Equipment Rack: 1 Nos

D. Cables & Power

• Connecting Cable (2C x 1.0 sq.mm): 50 meters
• Power Extension Board: 1 Nos

E. Control Station

• Computer System (i5/8GB RAM/SSD): 1 Nos
• Computer Table: 1 Nos

IV. Documentation and Educational Support

Each pack is provided with:

• Hard Copy and Soft Copy of Manuals
• Technical Specifications of Equipment
• Wiring Diagrams, Configuration Examples
• Hands-on Exercises for Trainers and Students
• Certificate of Conformity from OEM
• OEM-issued Global Certification for Trainees
