CNC Micro Milling Machine (VPL-CNC-15M)
Specifications
- Travels: X-200mm * Y-150mm * Z-60mm
- Table size: 250mm * 310mm
- Leadscrews: M10 * Pitch=1.5mm
- Spindle motor: Speed: 28000 rpm, Power: 230W
- Drill chuck: 1/4″
- Nuts: Anti-Backlash Nuts on all axis
- Material: Constructed of aluminum alloy (ANODIZING)
- Stepping Motor:
Step angle: 1.8 degree
Number of Phase: 2
Hold torque: 4.4 kg.cm
Rated current/Phase: 1.68 amps.
Phase resistance: 1.65 ohms
Voltage/Phase: 2.77 VDC - Physical:
Width overall: 51″ (1295 mm)
Depth overall: 34″ (864 mm)

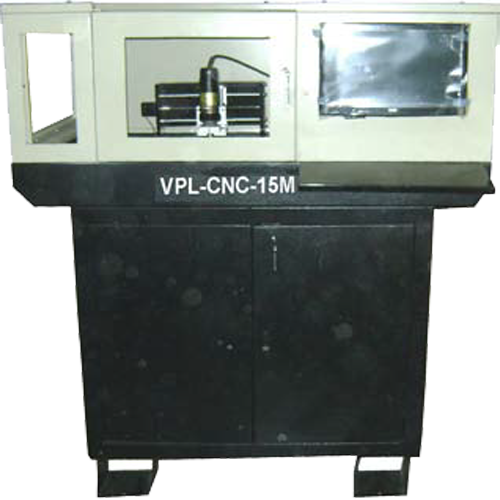

Height overall: 58″ (1473 mm) - The system installed in a metallic enclosure with 5′ height, openable front door, acrylic front and side cover and with display panel.
- It has coolant system with removable collector.
- It has mechanical storage system on the bottom for Computer system, Controller, UPS and for Electrical wiring.
- The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT Monitor & Keyboard.
