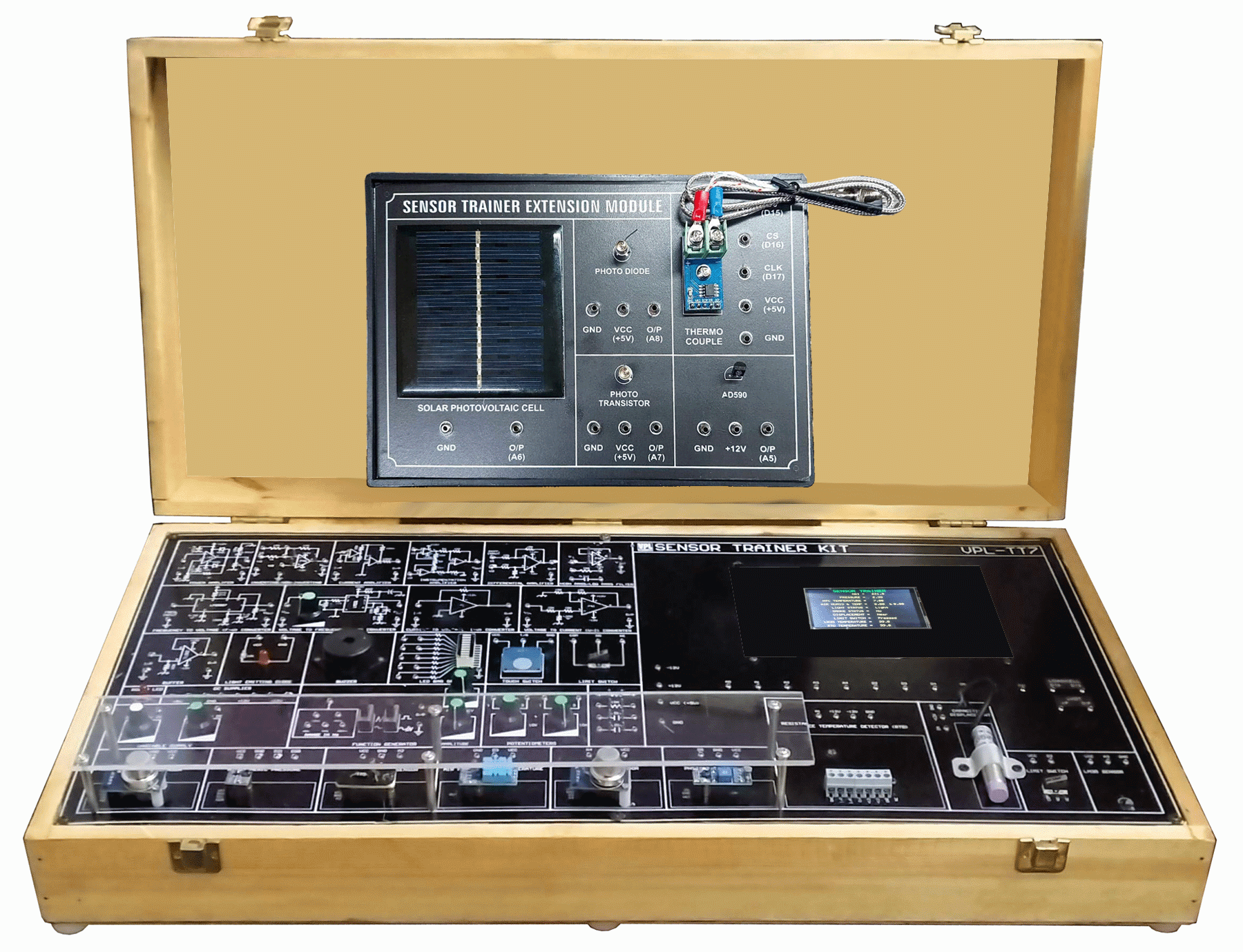

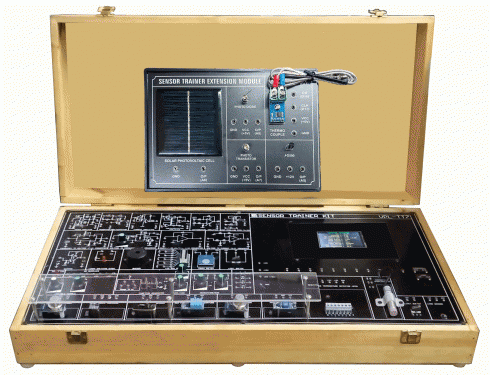

Sensor Lab Trainer (VPL-TT7)

Sensor Lab Trainer (VPL-TT7)

SKU: VPL-TT7 Category:

Salient Features

  • IoT-enabled Linux-based 7” graphical touch LCD with an inbuilt ARM Cortex processor & Data Acquisition (DAQ) system.
  • Software for viewing output waveforms, reading operating manuals, tutorials, etc.
  • USB storage and HDMI output for extended connectivity.
  • Ethernet port for connecting to real-world applications.
  • Supports a variety of amplifiers, filters, and converters:
    • Inverting, Non-Inverting, Power, Current, Instrumentation, Differential Amplifiers
    • Buffer, Frequency to Voltage, Voltage to Frequency, Current to Voltage, Voltage to Current Converter
    • High Pass and Low Pass Filters
    • LED, Buzzer, Relay, Square Wave Generator

Key Components:

  • Inbuilt DAQ for real-time data acquisition.
  • Stand-alone unit for learning and practical experimentation.
  • USB Port for Keyboard and Pen drive interface.
  • Ethernet Port for networking.
  • HDMI Port for video output.
  • Data Logging in .csv format.
  • Onboard Graph Capture and storage capabilities.
  • Office tools to view PDF and DOC files.
  • Signal Conditioning for sensor-based experiments.

Features:

  • Sensor Fundamentals: Learn about signal conditioning, sensors, and actuators.
  • Testing & Graphing: Real-time graphs for various sensors including:
    • Light Intensity Sensors: Photo Diode, Photo Transistor, Photo Voltaic Cell, and LDR.
    • Temperature Sensors: NTC Thermistor, Platinum RTD, K and J-type Thermocouple, AD590, and LM35.
  • Fault Finding: Diagnose issues with sensor types and signal conditioning circuits.
  • Amplifier Testing: Inverting, Non-Inverting, Differential, Instrumentation, and Current Amplifiers.
  • Filter Testing: High Pass and Low Pass Filters.
  • Converter Testing: Frequency to Voltage, Voltage to Frequency, Current to Voltage, and Voltage to Current Converters.
  • Output Blocks: Testing of LEDs, Buzzers, and Relays.

Onboard Specifications:

  • Display: 7” capacitive touchscreen for interactive control and display.
  • Connectivity: USB, Ethernet, HDMI ports for versatile connection options.
  • Square Wave Generator: Up to 40 KHz.
  • Low Pass Filter: Up to 30 KHz.
  • High Pass Filter: Effective above 40 KHz.
  • Amplifiers:
    • Inverting: Variable Gain (1-10)
    • Non-Inverting: Variable Gain (2-10)
    • Differential: Variable Gain (1-10)
    • Instrumentation: Variable Gain (10-20)
  • Converters:
    • Frequency to Voltage: Input (1-10 KHz), Output (1-10 V)
    • Voltage to Frequency: Input (1-10 V), Output (1-10 KHz)
    • Current to Voltage: Input (4-20 mA), Output (0-5 V)
    • Voltage to Current: Input (0-5 V), Output (4-20 mA)
    • Analog/Digital Converter: 4 Channels (0-5V).
    • Digital/Analog Converter: 1 Channel (0-3.3V).
  • Input/Output Ports: 4 IP / 4 OP.
  • Operating Voltage Range: 0 – 3.3V.

Sensor Specifications:

  • Temperature Sensors: RTD, NTC Thermistor, LM35, J/K Type Thermocouple, AD590.
  • Optical Sensors: Photo Voltaic Cell, LDR, Photo Transistor, PIN Photo Diode.
  • IR Sensors: TSOP 1738, IR LED.
