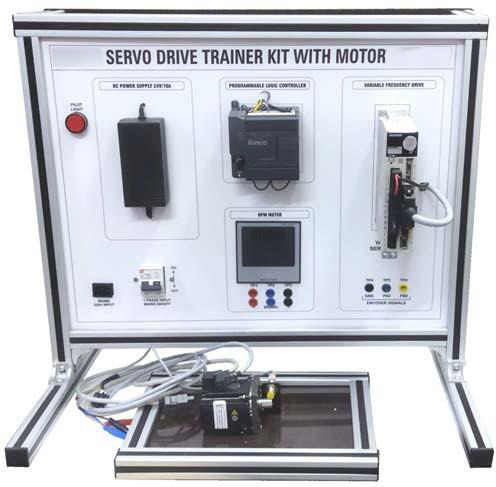

Servo Drive Trainer with Motor (VPL-YSD)

Yaskawa brand Drive & Motor will be provided in the trainer kit

Servo Drive Specification:

• Single-phase 200 to 230 VAC
• Servomotor Max. Capacity 200W to 500 Watt
• Feedback: Serial encoder 20-bit (incremental encoder)
• Sequence Input 7 Number of Channels
• Functions:
  • Homing deceleration switch signal
  • External latch signals
  • Forward run prohibited, reverse run prohibited
  • Forward external torque limit, reverse external torque limit
  • Positive and negative logic can be changed.
  • Sequence Output: Servo alarm, 3 Number of Channels
• Functions
  • Positioning completion
  • Speed limit detection
  • Speed coincidence detection
  • Brake
  • Rotation detection
  • Warning
  • Servo ready
  • Near
  • Torque limit detection
  • Positive and negative logic can be changed

Servo Motor Specification:

• Single phase 200-250 VAC
• Rated Output: 200W to 500 Watt
• Serial encoder :20 bit Incremental encoder
• Shaft End with key and tap

Experiments:

• Study of Servo drive, Servo Motor and its control and power wiring.
• Study of Servo drive parameters
• Interfacing Servo drive with PLC.
• Study of Encoder interfacing.
