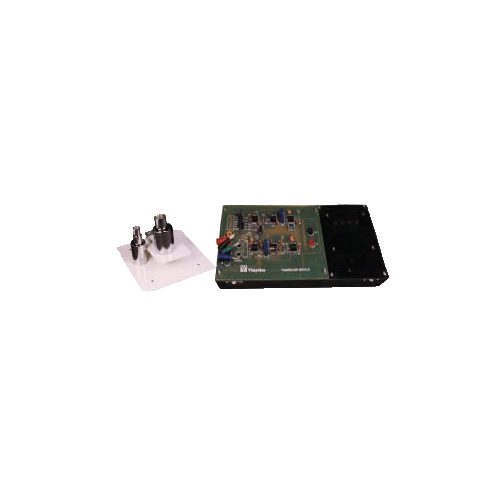

STRAIN GAUGE TRAINER (VPL-TT-SGT-L)

Categories: , ,

Specifications

  • Parameter Measured : Strain in terms of Kilograms on a cantilever beam.
  • Measurement System :
    • a] Weights
    • b] Transducer with electronic instrumen tation.
  • Transducer : Temperature compensated strain gauge.
  • Type : Cu-Ni foil with polyamide carrier base.
  • Gauge Resistance : 350 Ohms (Nominal).
  • Transducer : Strain gauges mounted on a cantilever beam.
  • Configuration : Bridge with two arms as strain gauges (Wheatstones Bridge principle).
  • Range : 1.999 Kilograms.
  • Actual Strain : By various weights to be placed in a pan fixed with the beam.
  • Excitation Source : DC Regulated source.
  • Tare Adjustment : Zero adjustment.
  • Readout : 3.5 digit digital display to indicate strain in kilograms.
  • Test Points : Test points are provided at various stages in the circuit to observe waveforms and voltages.
  • Indicator : Mains ON/OFF.
  • Power Requirements : 230V, ± 10% AC, 50Hz, 1f.
  • Standard Accessories : Detailed Instruction Manual.



Note: Specifications can be changed, added or subtracted without notice in our constant efforts for improvement.
