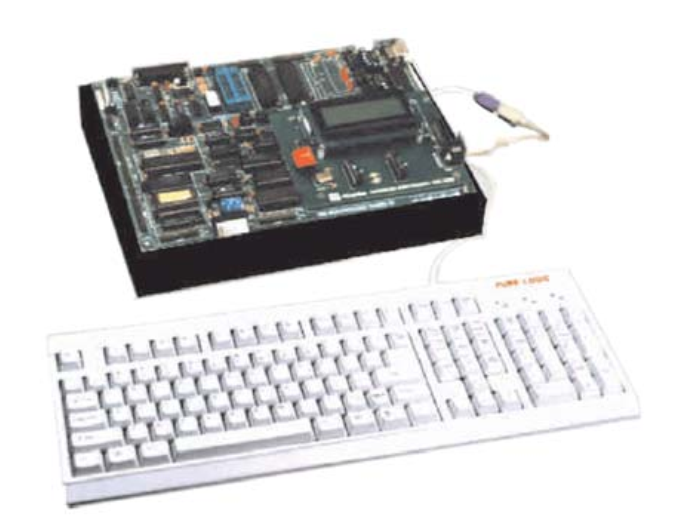

8085 Microprocessor Kit (VMC-8509)

VMC-8509 8085 Microprocessor Kit with Accessories/Peripherals and Interfacing Devices.

SPECIFICATIONS

  • In addition to normal specifications
  • 8251 study card USART 8279 study card 8255 study card
  • SRAM and DRAM interface card with converter card DMA Controller
  • Battery Backup for RAM.
  • Total on-Board memory expansion to 384 KB.
  • 72 programmable I/O lines through 8255.
  • Real time Clock interfaces.
  • Three 16-bit Timer/Counter through 8253.
  • RS 232C serial interface through 8251.
  • USB Interface for PC Interface
  • 8 different level of interrupt through 8259.
  • 1 Mask able interrupts.
  • 8 non-maskable interrupt
  • On-board A/D Converter
  • On-board D/A Converter
  • On-board Relay having 2 NO and NC contacts.
  • On-board Opto Isolated input
  • On-board 8 Digital inputs
  • On-board 8 Digital Outputs
  • On-board Temperature Sensor
  • On-board Traffic light controller
  • On-board Printer Interface
  • 20*2 LCD Display (40×2 optional)
  • 104 Keys IBM Compatible
  • Key Board (USB)
  • Two modes of Commands key board mode and serial mode.
  • All address data and control lines available at FRC connectors per multi-Bus.
  • Facility for Down/Up loading files from/to PC
  • With Built in Power Supply
